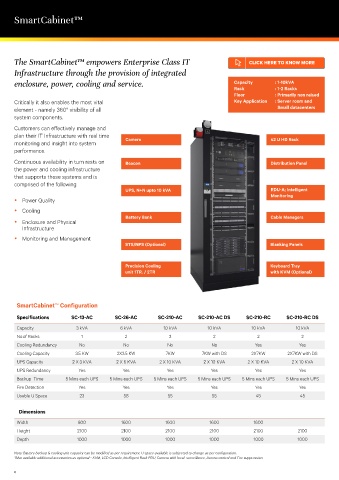

SmartCabinet™

The SmartCabinet™ empowers Enterprise Class IT CLICK HERE TO KNOW MORE

Infrastructure through the provision of integrated
enclosure, power, cooling and service. Capacity : 1-10kVA
Rack : 1-2 Racks
Floor : Primarily non raised
Critically it also enables the most vital Key Application : Server room and
element - namely 360° visibility of all Small datacenters
system components.
Customers can effectively manage and
plan their IT Infrastructure with real time Camera 42 U HD Rack
monitoring and insight into system
performance.

Continuous availability in turn rests on Beacon Distribution Panel
the power and cooling infrastructure
that supports these systems and is
comprised of the following:
UPS, N+N upto 10 kVA RDU-A; Intelligent
Monitoring
y yPower Quality
y yCooling
Battery Bank Cable Managers
y yEnclosure and Physical
Infrastructure

y yMonitoring and Management
STS/NPS (Optional) Blanking Panels

Precision Cooling Keyboard Tray
unit 1TR. / 2TR with KVM (Optional)

SmartCabinet™ Configuration

Specifications SC-13-AC SC-26-AC SC-210-AC SC-210-AC DS SC-210-RC SC-210-RC DS
Capacity 3 kVA 6 kVA 10 kVA 10 kVA 10 kVA 10 kVA
No.of Racks 1 2 2 2 2 2
Cooling Redundancy No No No No Yes Yes
Cooling Capacity 3.5 KW 2X3.5 KW 7KW 7KW with DS 2X7KW 2X7KW with DS
UPS Capacity 2 X 3 KVA 2 X 6 KVA 2 X 10 KVA 2 X 10 KVA 2 X 10 KVA 2 X 10 KVA
UPS Redundancy Yes Yes Yes Yes Yes Yes
Backup Time 5 Mins each UPS 5 Mins each UPS 5 Mins each UPS 5 Mins each UPS 5 Mins each UPS 5 Mins each UPS
Fire Detection Yes Yes Yes Yes Yes Yes
Usable U Space 23 58 55 55 45 45

Dimensions
Width 800 1600 1600 1600 1600
Height 2100 2100 2100 2100 2100 2100
Depth 1000 1000 1000 1000 1000 1000

Note: Battery backup & cooling unit capacity can be modified as per requirement. U space available is subjected to change as per configuration.
*Also available additional accessories as optional - KVM, LCD Console, Intelligent Rack PDU, Camera with local surveillance, Access control and Fire suppression
